Splicing

Heating presses for bonded splices

As regards bonded splices we differentiate between heating presses without and with water cooling which can be used in all industries.

All devices have heating platens and are suitable for splicing temperatures of up to 120°C. Material widths of 300 mm max. and material thickness of up to 8 mm are possible.

Heating press

SB-HP-120/50
Datasheet (PDF | EN | 281 KB)

Heating press

Heating press

SB-HP-160/100
SB-HP-160/150
Datasheet (PDF | EN | 277 KB)

Heating press


SB-HP-180/200
Datasheet (PDF | EN | 419 KB)

Heating press


SB-HP-180/300
Datasheet (PDF | EN | 290 KB)

Heating press


SB-HP-180/500
Datasheet (PDF | EN | 296 KB)

Heating press


SB-HP-180/750 and SB-HP-180/1000
Datasheet (PDF | EN | 274 KB)
Heating press

Type key

* SB = Splicing tools for bonded splices
** HP = Heating press

Type Key Bonded Splicing

Heating tools for melt splices

In melt splices the tools are classified according to the specific applications they are used in.

Depending on the belt type, the heating tools can be used for Z-splices, Z-overlap splices, overlap splices and for splicing timing belts in different applications.

Splicing tools with Passive cooling

Heating clamps for melt splices

Our tools are easy to manage, so you can work comfortably anywhere on your machine!

  • Ergonomic
  • Quick
  • Effective

The heating clamps have heating on both sides and can be used for all melt splices to 210°C. They can be used to splice nearly all thicknesses of material up to 4mm and 120 mm in width. These tools are primarily used in the paper and printing industry but are also suitable for other industries.

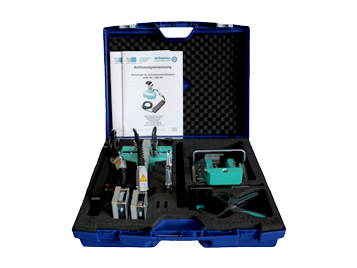

Tailor-made kits save time and money

From the ready-to-go tool set for melt splices to the premium set consisting of punch-cutting and splicing tool in practical case, you'll find the solution that's perfect for your application:

  • BTS tool set with heating clamp and accessories in a cardboard box
  • Combinable with punch presses
  • The fitting solution in tool box with foam lining

Heating clamp V type

SM-HC-50/40-V
SM-HC-50/80-V
Datasheet (PDF | EN | 292 KB)

SM-HC-50/60-V
SM-HC-80/60-V
Datasheet (PDF | EN | 220 KB)

Heating clamp F type


SM-HC-50/40-F
SM-HC-50/80-F
Datasheet (PDF | EN | 218 KB)

SM-HC-50/60-F
SM-HC-80/60-F
Datasheet (PDF | EN | 201 KB)

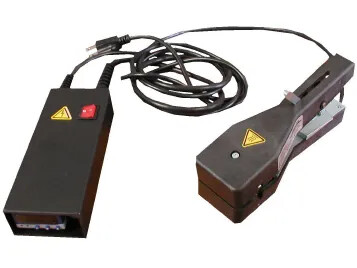

Heating clamp V type

Heating clamp

SMX-HC-140/40
Datasheet (PDF | EN | 224 KB)

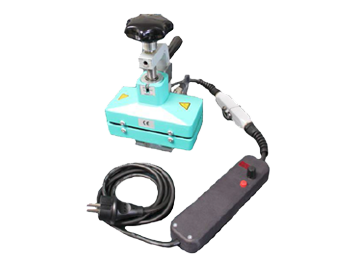

Heating clamp 140/40

Heating clamp

SMX-HC-65/120
Datasheet (PDF | EN | 290 KB)

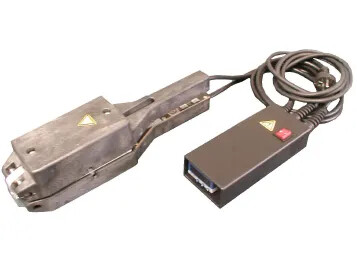

Heating clamp 65/120

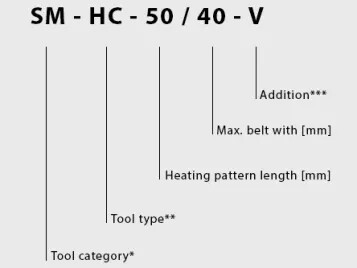

Type key

* SM = splicing tools for melt splices
** HC = heating clamps
*** V = adjustable temperature

SMX = special splicing tools for melt splices
F = fixed temperature level

Type Key Heating Clamps

Special Heating Tools for melt splices

You're a special case?
Then this is the right place to come.
Because these tools are only used in special cases for ...

  • large belt widths/where fitting space is tight
  • on-site belt repairs
  • timing belts

Special heating tools are used for special applications, belt repairs and for splicing timing belts. The SM-HD-110/2000 heating tool is for melt splices on machinery where normal heating tools cannot be used because of space and weight. Tools in the SM-RD-120/... series are used above all in belt repairs, while special SMX-HP-150/...-PP tools are used for splicing timing belts.

Heating tool for butt splices

SMX-BD-0/100-3V
Datasheet (PDF | EN | 288 KB)

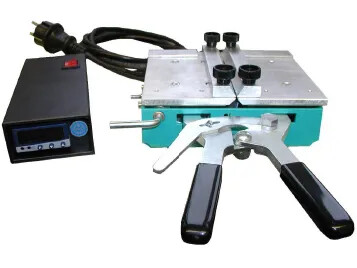

Heating tool for butt splices

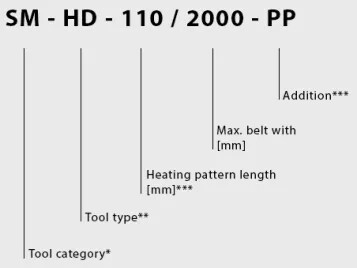

Type key

* SM = splicing tools for melt splices
** HD = heating tool
*** PP = Siegling Proposition timing belt

SMX = special splicing tools for melt splices
BD = heating tool for butt splices
RD = repair tool
HP = heating press

Type Key Special Heating Tools

Water-cooled Splicing tools

Heating presses for melt splices

Whether it's for specialist or general purposes our heating presses are:

  • User-friendly
  • Totally reliable
  • Low-maintenance

The heating presses have heating on both sides and can be used for all melt splices to 210°C. They can be used to splice nearly all thickness of material up to 4000mm in width. The heating presses are classified as tools creating pressure mechanically or pneumatically and depending on the areas used in, have heating platens 120mm, 150mm or 180mm in length.

Heating press

SM-HP-180/500-P
Datasheet (PDF | EN | 304 KB)

SM-HP-180/1000-P
Datasheet (PDF | EN | 298 KB)

SM-HP-180/1500-P
Datasheet (PDF | EN | 298 KB)

SM-HP-180/2250-P
Datasheet (PDF | EN | 303 KB)

SM-HP-180/3000-P
Datasheet (PDF | EN | 277 KB)

SM-HP-180/3500-P-P
Datasheet (PDF | EN | 280 KB)

SM-HP-180/3200-P
SM-HP-180/3400-P
Datasheet (PDF | EN | 461 KB)

SM-HP-180/4000-P
Datasheet (PDF | EN | 282 KB)

SM-HP-120/750-P
Datasheet (PDF | EN | 322 KB)

SM-HP-120/1250-P
Datasheet (PDF | EN | 272 KB)

SM-HP-120/1300-P
Datasheet (PDF | EN | 272 KB)

SM-HP-120/2000-P
Datasheet (PDF | EN | 292 KB)

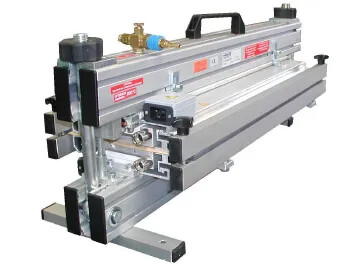

Pressure hose


SM-HP-120/300-P, SM-HP-120/750-P, SM-HP-120/1250-P and SM-HP-120/2000-P
Datasheet (PDF | EN | 427 KB)

SM-HP-120/600-P, SM-HP-120/1000-P und SM-HP-120/1600-P
Datasheet (PDF | EN | 427 KB)

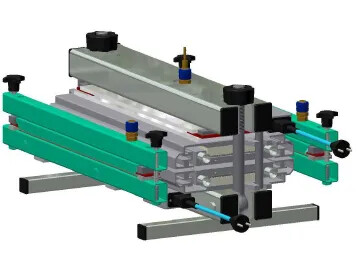

Heating press 180/500-P

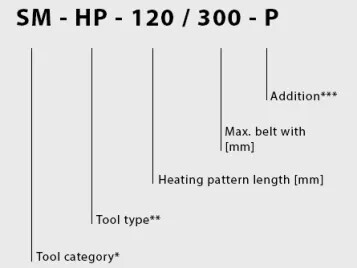

Type key

* SM = Splicing tools for melt splices
** HP = Heating presses
*** P = pneumatic

Type Key Hot Presses

Special Heating Tools for melt splices

You're a special case?
Then this is the right place to come. Because these tools are only used in special cases for ...

  • large belt widths/where fitting space is tight
  • on-site belt repairs
  • timing belts

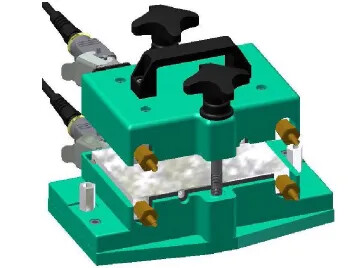

Special heating tools for melt splices

Special heating tools are used for special applications, belt repairs and for splicing timing belts. The SM-HD-110/2000 heating tool is for melt splices on machinery where normal heating tools cannot be used because of space and weight. Tools in the SM-RD-120/... series are used above all in belt repairs, while special SMX-HP-150/...-PP tools are used for splicing timing belts.

Repair heating devices

SM-RD-120/300, SM-RD-120/750 and SM-RD-120/1250
Datasheet (PDF | EN | 203 KB)

Repair heating devices

Timing belt-heating devices

SMX-HP-150/60-PP
Datasheet (PDF | EN | 279 KB)

SMX-HP-150/120-PP
Datasheet (PDF | EN | 264 KB)

Timing belt-heating devices

Type key

* SM = splicing tools for melt splices
** HD = heating tool
*** PP = Siegling Proposition timing belt

SMX = special splicing tools for melt splices
BD = heating tool for butt splices
RD = repair tool
HP = heating press

Type Key Special Heating Tools

Air-cooled Splicing tools

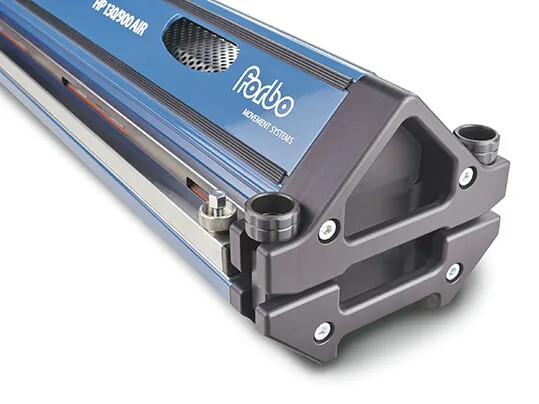

Siegling Blizzard – the turbo-cooled light-weight combo press

The Siegling Blizzard press is supplied with a flight case on castors. Because it’s so compact and lightweight, it’s quick and easy to set up. It’s ready to use as soon as you’ve plugged it into the mains because there’s no need to connect it to external subsystems.

  • The control unit,
  • compressor and
  • air cooling system are integrated in the press.

This saves time and costs, prevents errors during operation and ensures hygiene on site.

Siegling Blizzard – the turbo-cooled light-weight combo press

Siegling Blizzard

Technical Info

Type designation Blizzard HP 130/300 AIR Blizzard HP 130/600 AIR Blizzard HP 130/900 AIR Blizzard HP 130/1200 AIR Blizzard HP 130/1500 AIR
Article number 870120 870121 870122 870123 870124
Technical Info
Effective belt widths [mm] 305 610 914 1219 1524
Max. effective splice length [mm] 130 130 130 130 130
Weight bottom part [kg] 14 20 26 32 37
Weight top part [kg] 9 13 17 21 25
Total weight [kg] 23 33 43 53 62
Length [mm] 505 805 1105 1405 1705
Total height [mm] 220 220 220 220 220
Max. pressure [bar] 2 2 2 2 2
Max. temperature [°C] 200 200 200 200 200
Dimensions for transport (L x B x H) [mm] 1000 x 430 x 380 1300 x 430 x 380 1600 x 430 x 480 1850 x 430 x 480 2150 x 430 x 480
Weigh for transport [kg] 45 60 76 91 107
Power requirements
1 phase [V/A] 230/8,8 230/14 230/16
3 phase [V/A] 400/4,4 400/7 400/8 400/12 400/15 A
