Preparation

Tool Finder

There are two steps in splicing: Preparing the splice and splicing endless.

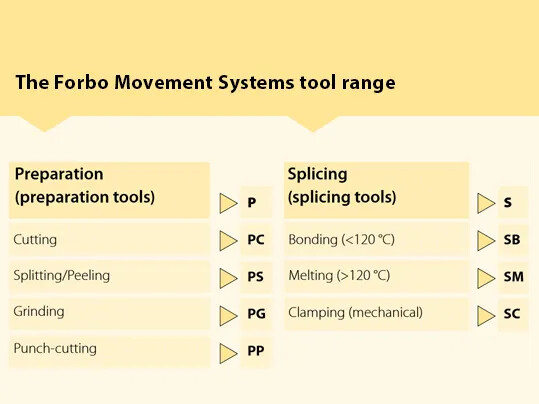

To help you find the right tool quickly and effectively, please choose between:

Preparation
Splicing













Preparation

Depending on the type of splice different preparation procedures are used individually or in combination with others: Cutting, Splitting/Peeling, Grinding, Punch-cutting

These procedures prepare the belting materials for the splicing procedure in such a way that by using different accessories such as adhesives, mechanical fasteners or pressure and temperature, high-quality and reliable splices are produced.

Hand-held cutter (cutting angle 60°/ 90°)

Cutting Device for 60° and 90°
Datasheet (PDF | EN | 307 KB)

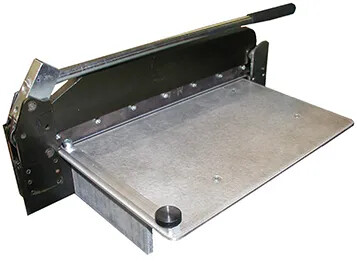

Hand-Held Cutter

Type key

* PC = preparation tools for cutting
** LC = longitudinal cutter
*** V = unlimited

HC = hand-held cutter
CC = cross cutter

Type Key Cutting


Wedge peeling machines

PS-WD-70/V
Datasheet (PDF | EN | 256 KB)

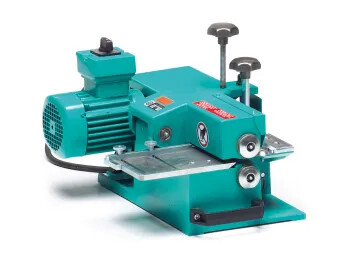

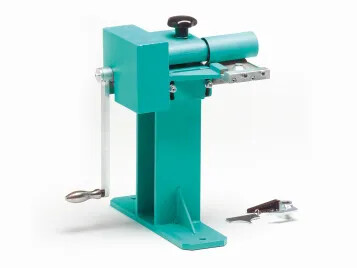

Wedge peeling machines

Peeling and splitting machine

PS-PM-110/V
Datasheet (PDF | EN | 224 KB)

Peeling and splitting machine


Grinders

PG-GM-V/130 and PG-GM-V/250
Datasheet (PDF | EN | 268 KB)

Hand-held grinder


PG-HG-V/V
Datasheet (PDF | EN | 201 KB)

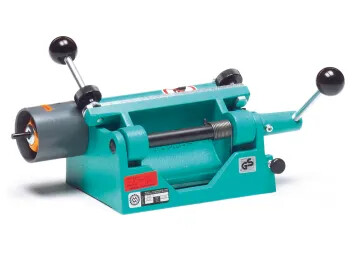

Grinding Tool

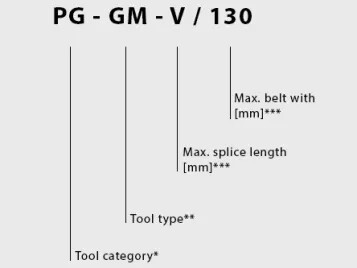

Type key

* PG = preparation tools for grinding
** GM = grinder
*** V = unlimited

HG = hand-held grinder

Type Key Grinding


Punch press for Z-splices

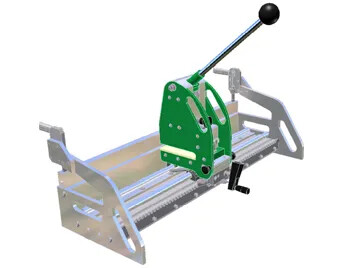

PP-ZP-V/300 - 1500
Datasheet (PDF | EN | 513 KB)

Punch press for Z-splices

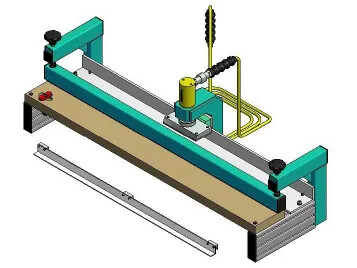

Punch press for Z-splices (pneumo-hydraulic)

PP-ZP-V/V-H
Datasheet (PDF | EN | 278 KB)

Punch press for Z-splices (pneumo-hydraulic)

Hand-held knife (for 70mm Splice)

PP-HP-70/V
Datasheet (PDF | EN | 256 KB)

(for 110mm Splice)


PP-HP-35/V
PP-HP-110/V
Datasheet (PDF | EN | 258 KB)

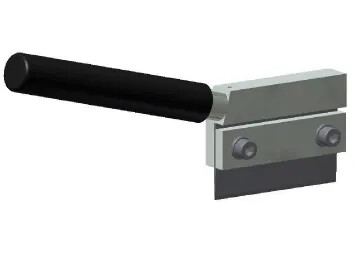

Hand-held Knife

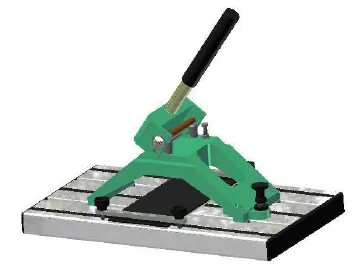

Punch press for Z-splices

PP-ZP-V/40-3
Datasheet (PDF | EN | 217 KB)

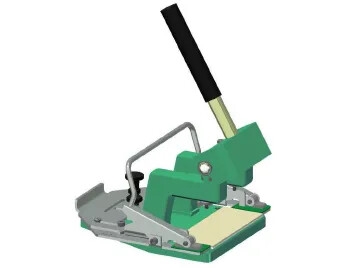

Punch press for Z-splices

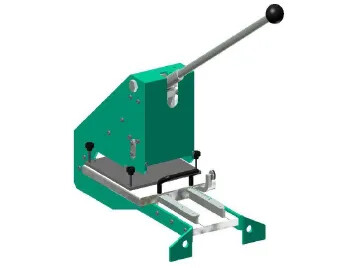

Punch press for Z-splices

PP-ZP-V/80-6
PP-ZP-V/150-6
Datasheet (PDF | EN | 248 KB)

Punch press for Z-splices

Punch press for Z-splices

PP-ZP-V/80-3
Datasheet (PDF | EN | 243 KB)

Punch press for Z-splices

Hand-held shears for Z-splices

PP-ZC-35/120-3
Datasheet (PDF | EN | 321 KB)

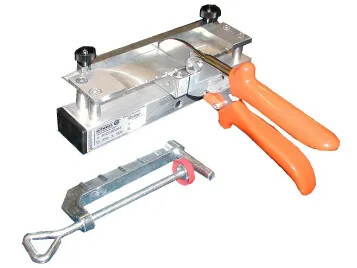

Hand-held shears for Z-splices

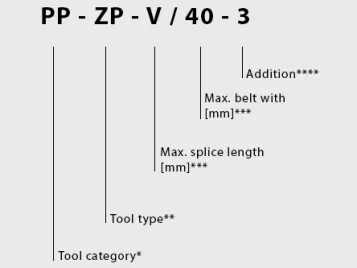

Type key

* PP = preparation tools for punch-cutting
** ZP = Z-punch tool
*** V = variable
** ** 3 = belt thickness in mm

ZC = Z-cutter
HP = hand held knife
H = hydraulic

Type Key Punch-Cutting
