Product Range

The "pros" of Siegling Proposition:
The Siegling Proposition product range includes all common timing belt pitches for standard conveying and handling operations.

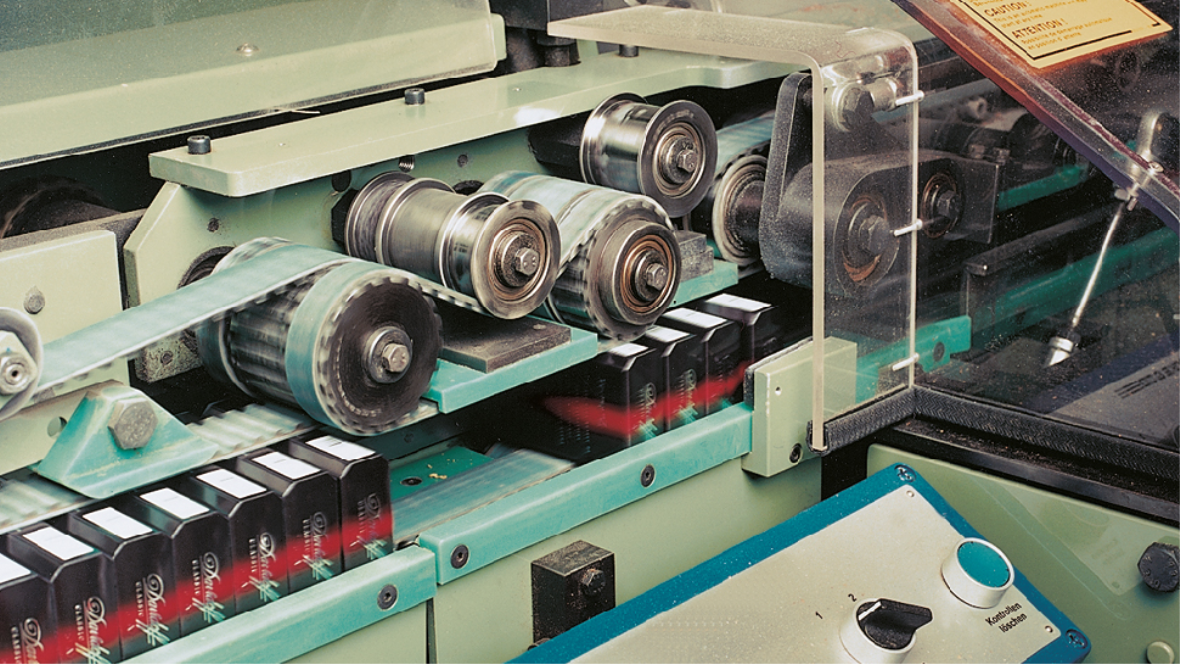

0014H Verpackungsautomat PP

T Pitch

T5

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
6 /- 0.5 0.015 0.012 10 16 30 25 180 230 90 110 180
8 /- 0.5 0.019 0.016 10 16 30 25 230 320 120 160 240
10 /- 0.5 0.024 0.020 10 16 30 25 310 430 150 210 310
12 /- 0.5 0.029 0.024 10 16 30 25 370 480 180 240 360
16 /- 0.5 0.038 0.032 10 16 30 25 460 610 230 300 490
20 /- 0.5 0.048 0.040 10 16 30 25 660 800 300 400 620
25 /- 0.5 0.060 0.050 10 16 30 25 830 980 410 490 800
32 /- 0.5 0.077 0.064 10 16 30 25 930 1200 460 600 1010
50 /- 0.5 0.120 0.100 10 16 30 25 1660 1800 830 900 1610
75 /- 0.75 0.180 0.150 10 16 30 25 2490 2800 1230 1470 2410
100 /- 0.75 0.240 0.200 10 16 30 25 3320 3700 1660 1800 3220
Proposition Product-Range T5

T5L

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.028
12 19 50




720
12 /- 0.5 0.034
12 19 50




880
16 /- 0.5 0.045
12 19 50




1200
20 /- 0.5 0.056
12 19 50




1500
25 /- 0.5 0.070
12 19 50




1920
32 /- 0.5 0.090
12 19 50




2480
50 /- 0.5 0.140
12 19 50




3920
75 /- 0.5 0.210
12 19 50




5840
100 /- 0.5 0.280
12 19 50




7840
Proposition Product-Range T5L

T10

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.048 0.040 12 38 60 50 880 700 440 350 700
12 /- 0.5 0.058 0.048 12 38 60 50 1050 850 530 420 900
16 /- 0.5 0.077 0.064 12 38 60 50 1300 1000 650 500 1200
20 /- 0.5 0.096 0.080 12 38 60 50 1760 1300 3200 650 1500
25 /- 0.5 0.120 0.100 12 38 60 50 2200 1750 1100 870 2000
32 /- 0.5 0.154 0.128 12 38 60 50 2600 2350 1300 1170 2500
40 /- 0.5 0.192 0.160 12 38 60 50 3520 2970 1760 1480 3200
50 /- 0.5 0.240 0.200 12 38 60 50 4400 3970 2200 1980 4000
75 /- 0.5 0.360 0.300 12 38 60 50 6600 4900 3300 2450 6000
100 /- 0.5 0.480 0.400 12 38 60 50 8800 6700 4400 3350 8100
Proposition Product-Range T10

T10LE

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 0.5 0.102
12 38 90




2160
25 /- 0.5 0.160
12 38 90




3450
32 /- 0.5 0.205
12 38 90




4530
50 /- 0.5 0.320
12 38 90




7120
75 /- 0.5 0.48
12 38 90




10800
100 /- 0.5 0.640
12 38 90




14470
Proposition Product-Range T10LE

T10L

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 0.5 0.093
15 48 90




2400
20 /- 0.5 0.446
15 48 90




2400
25 /- 0.5 0.145
15 48 90




3840
50 /- 0.5 0.290
15 48 90




7920
75 /- 0.5 0.435
15 48 90




12000
100 /- 0.5 0.580
15 48 90




16080
Proposition Product-Range T10L

T20

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 1.0 0.123 0.100 15 96 90 80 2160 1870 1080 940 2400
20 /- 1.0 0.154 0.130 15 96 90 80 2160 1870 1080 940 3120
25 /- 1.0 0.193 0.160 15 96 90 80 3360 2900 1680 1450 3840
32 /- 1.0 0.246 0.205 15 96 90 80 4320 3750 2160 1870 5040
50 /- 1.0 0.385 0.320 15 96 90 80 6720 5700 3360 2850 7920
75 /- 1.0 0.578 0.480 15 96 90 80 10080 8400 5040 4200 12000
100 /- 1.0 0.770 0.640 15 96 90 80 13440 11000 6720 5500 16080
Proposition Product-Range T20

T20E

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 1.0 0.115
12 76 90




2160
20 /- 1.0 0.144
12 76 90




2590
25 /- 1.0 0.180
12 76 90




3450
32 /- 1.0 0.230
12 76 90




4530
50 /- 1.0 0.360
12 76 90




7120
75 /- 1.0 0.540
12 76 90




10800
100 /- 1.0 0.720
12 76 90




14470
Proposition Product-Range T20E

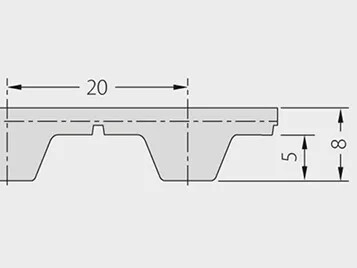

T20L

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 1.0 0.138
22 140 120




4400
20 /- 1.0 0.172
22 140 120




5500
25 /- 1.0 0.215
22 140 120




7150
32 /- 1.0 0.275
22 140 120




9350
50 /- 1.0 0.430
22 140 120




14850
75 /- 1.0 0.645
22 140 120




22000
100 /- 1.0 0.860
22 140 120




29700
Proposition Product-Range T20L

AT Pitch

AT5

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.030 0.027 12 19 50 60 640 455 320 341 720
12 /- 0.5 0.036 0.032 12 19 50 60 770 546 384 410 880
16 /- 0.5 0.048 0.043 12 19 50 60 1120 757 560 568 1200
20 /- 0.5 0.060 0.054 12 19 50 60 1470 997 640 820 1500
25 /- 0.5 0.075 0.068 12 19 50 60 1840 1210 920 908 1920
32 /- 0.5 0.096 0.086 12 19 50 60 2240 1562 1120 1172 2480
50 /- 0.5 0.150 0.135 12 19 50 60 3680 2468 1840 1851 3920
75 /- 0.5 0.225 0.203 12 19 50 60 5500 3727 2760 2795 5840
100 /- 0.5 0.300 0.270 12 19 50 60 7350 4985 3680 3739 7840
Proposition Product-Range AT5

AT10

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
12 /- 0.5 0.077 0.050 15 48 90 120 1800 810 900 607 1680
16 /- 0.5 0.102 0.067 15 48 90 120 2400 1078 1200 809 2400
20 /- 0.5 0.128 0.084 15 48 90 120 3070 1470 1540 1103 2850
25 /- 0.5 0.160 0.105 15 48 90 120 3840 1750 1920 1313 3840
32 /- 0.5 0.205 0.134 15 48 90 120 4560 2273 2280 1705 5040
50 /- 0.5 0.320 0.210 15 48 90 120 7680 3617 3840 2713 7920
75 /- 0.5 0.480 0.315 15 48 90 120 11520 5483 5760 4113 12000
100 /- 0.5 0.640 0.420 15 48 90 120 15360 7350 7680 5513 16080
150 /- 0.5 0.960 0.630 15 48 90 120 26100 11083 13050 8313
Proposition Product-Range AT10

AT10E

Width [mm] Width tolerance [mm] Weight. approx. [kg/m] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.064
14 45 90
1240
625
1100
12 /- 0.5 0.077
14 45 90
1480
750
1350
16 /- 0.5 0.102
14 45 90
1950
970
1950
20 /- 0.5 0.128
14 45 90
2480
1250
2340
25 /- 0.5 0.160
14 45 90
3120
1560
3120
32 /- 0.5 0.205
14 45 90
3700
1850
4090
50 /- 0.5 0.320
14 45 90
6200
3100
6430
75 /- 0.5 0.480
14 45 90
9360
4680
9750
100 /- 0.5 0.640
14 45 90
12480
6240
13060
Proposition Product-Range AT10E

AT10L

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.068
25 80 120
3025
760
2760
12 /- 0.5 0.082
25 80 120
3630
912
3300
16 /- 0.5 0.109
25 80 120
4400
1200
4400
20 /- 0.5 0.136
25 80 120
6050
1520
5500
25 /- 0.5 0.170
25 80 120
6600
1900
7150
32 /- 0.5 0.218
25 80 120
8800
2250
9350
50 /- 0.5 0.340
25 80 120
14300
3800
14850
75 /- 0.5 0.510
25 80 120
22550
5700
22000
100 /- 0.5 0.680
25 80 120
30250
7600
29700
Proposition Product-Range AT10L

AT20

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
16 /- 1.0 0.160 0.117 18 115 120 180 4400 1138 2200 853 4400
25 /- 1.0 0.250 0.183 18 115 120 180 6600 1750 3300 1313 7150
32 /- 1.0 0.320 0.234 18 115 120 180 8800 2275 4400 1706 9350
50 /- 1.0 0.500 0.365 18 115 120 180 13200 3625 6600 2719 14850
75 /- 1.0 0.750 0.548 18 115 120 180 19800 5500 9900 4125 22000
100 /- 1.0 1.000 0.730 18 115 120 180 26400 7375 13200 5531 29700
150 /- 1.0 1.500 1.095 18 115 120 180 46200 11125 23100 8344
Proposition Product-Range AT20

AT20L

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
25 /- 1.0 0.278
22 140 170
8000


8000
32 /- 1.0 0.355
22 140 170
10000


10000
50 /- 1.0 0.555
22 140 170
17000


16000
75 /- 1.0 0.833
22 140 170
26000


24000
100 /- 1.0 1.110
22 140 170 35000


33000 undefined
150 /- 1.0 1.665
22 140 170
53000



Proposition Product-Range AT20L

XL, L, H, XH-Pitch

XL

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
6.4 0.25 /- 0.5 0.014 0.012 10 16 30 25 190 250 95 120 undefined
7.9 0.31 /- 0.5 0.017 0.014 10 16 30 25 221 320 111 160 undefined
9.5 0.37 /- 0.5 0.021 0.017 10 16 30 25 284 410 142 200 undefined
12.7 0.5 /- 0.5 0.028 0.023 10 16 30 25 411 500 205 250 undefined
19.1 0.8 /- 0.5 0.042 0.034 10 16 30 25 632 780 316 390 undefined
25.4 1.0 /- 0.5 0.056 0.046 10 16 30 25 853 1000 427 500 undefined
50.8 2.0 /- 0.5 0.112 0.092 10 16 30 25 1738 1887 698 1415 undefined
101.6 4.0 /- 0.5 0.112 0.092 10 16 30 25 1738 1887 698 1415 undefined
Proposition Product-Range XL

L

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
9.5 0.37 /- 0.5 0.037 0.030 12 36 60 55 800 620 400 310
12.7 0.5 /- 0.5 0.050 0.041 12 36 60 55 1100 830 500 410
19.1 0.8 /- 0.5 0.074 0.061 12 36 60 55 1600 1250 800 620
25.4 1.0 /- 0.5 0.099 0.081 12 36 60 55 2200 1600 1100 830
38.1 1.5 /- 0.5 0.149 0.122 12 36 60 55 3200 2480 1600 1240
50.8 2.0 /- 0.5 0.198 0.163 12 36 60 55 4400 3320 2200 1660
76.2 3.0 /- 0.5 0.297 0.244 12 36 60 55 6600 4960 3300 2480
101.6 4.0 /- 0.5 0.396 0.325 12 36 60 55 8800 6640 4400 3320
Proposition Product-Range L

H

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
12.7 0.5 /- 0.5 0.057 0.044 14 56 60 65 1000 830 500 410 1000
19.1 0.75 /-0.5 0.086 0.067 14 56 60 55 1600 1250 800 620 1500
25.4 1.0 /-0.5 0.114 0.089 14 56 60 55 2200 1660 1100 830 2000
38.1 1.5 /-0.5 0.171 0.133 14 56 60 55 3200 2480 1600 1240 3000
50.8 2.0 /-0.5 0.229 0.178 14 56 60 55 4400 3320 2200 1660 4000
76.2 3.0 /-0.5 0.343 0.267 14 56 60 55 6600 4900 3300 2450 6000
101.6 0.5 /-0.5 0.457 0.356 14 56 60 55 8800 6300 4400 3150 8100
125.4 0.5 /-0.5 0.686 0.533 14 56 60 55 12200 6850 6100 5100
Proposition Product-Range H

H LE

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
12.7 0.5 /- 0.5 0.066
12 49 90




1720
19.1 0.75 /- 0.5 0.099
12 49 90




2590
25.4 1 /- 0.5 0.132
12 49 90




3450
38.1 1.5 /- 0.5 0.198
12 49 90




5400
50.8 2 /- 0.5 0.265
12 49 90




7120
76.2 3 /- 0.5 0.396
12 49 90




10800
101.6 4 /- 0.5 0.528
12 49 90




14470
Proposition Product-Range HLE

H L

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
12.7 0.5 /- 0.5 0.070
15 61 90




1920
19.1 0.75 /- 0.5 0.105
15 61 90




2880
25.4 1 /- 0.5 0.140
15 61 90




3840
38.1 1.5 /- 0.5 0.210
15 61 90




6000
50.8 2 /- 0.5 0.280
15 61 90




7920
76.2 3 /- 0.5 0.420
15 61 90




12000
101.6 4 /- 0.5 0.560
15 61 90




16080
Proposition Product-Range HL

XH

Width [mm] Width [inch] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]


Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
25.4 1 /- 0.5 0.254 0.231 18 127 150 150 3360 1778 1680 1334
38.1 1.5 /- 0.5 0.381 0.346 18 127 150 150 6720 2726 3360 2045
50.8 2 /- 0.5 0.508 0.462 18 127 150 150 6720 3675 3360 2756
76.2 3 /- 0.5 0.762 0.692 18 127 150 150 10080 5571 5040 4178
101.6 4.0 /- 0.5 1.016 0.924 18 127 150 150 13440 7468 6720 5601
152.4 6.0 /- 0.75 1.524 1.384 18 127 150 150 13440 11261 6720

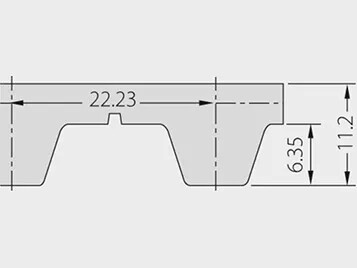

Proposition Product-Range XH

HTD 5M

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm[N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.048 0.029 13 21 50 60 640 383 320 287 720
12 /- 0.5 0.058 0.035 13 21 50 60 768 460 384 344 880
15 /- 0.5 0.072 0.044 13 21 50 60 1120 610 560 457 1120
20 /- 0.5 0.096 0.058 13 21 50 60 1280 837 640 627 1500
25 /- 0.5 0.120 0.073 13 21 50 60 1840 1064 920 798 1920
32 /- 0.5 0.154 0.093 13 21 50 60 2048 1362 1180 1022
50 /- 0.5 0.240 0.145 13 21 50 60 3680 2198 2409 1648 3920
75 /- 0.5 0.360 0.218 13 21 50 60 5520 3192 3600 2394 5840
100 /- 0.5 0.480 0.290 13 21 50 60 9773 4467 4886 3350 7840
150 /- 0.75 0.720 0.435 13 21 50 60 14278 6736 7364 5052
Proposition Product-Range HTD5M

HTD 8M

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
10 /- 0.5 0.069 0.047 18 46 90 120 1200 630 600 473
15 /- 0.5 0.104 0.071 18 46 90 120 1920 1003 960 753
20 /- 0.5 0.138 0.094 18 46 90 120 2880 1377 1440 1033 3120
25 /- 0.5 0.173 0.118 18 46 90 120 3840 1750 1920 1313 3840
30 /- 0.5 0.207 0.142 18 46 90 120 4800 2123 2400 1593 4800
50 /- 0.5 0.345 0.236 18 46 90 120 7680 3617 3840 2713 7920
85 /- 0.5 0.587 0.400 18 46 90 120 14640 6230 7320 4673 13440
100 /- 0.5 0.690 0.470 18 46 90 120 15712 7350 7856 5513 15360
150 /- 0.75 1.035 0.710 18 46 90 120 23693 11083 11847 8313
Proposition Product-Range HTD8M

HTD 8ME

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
20 /- 0.5 0.130
16 41 90




2590
25 /- 0.5 0.163
16 41 90




3450
30 /- 0.5 0.195
16 41 90




4100
50 /- 0.5 0.325
16 41 90




7120
85 /- 0.5 0.553
16 41 90




12090
100 /- 0.5 0.650
16 41 90




14470
Proposition Product-Range HTD8ME

HTD 14M

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
25 /- 0.5 0.275 0.210 25 111 120 200 6600 1515 3300 1136 7150
40 /- 0.5 0.440 0.336 25 111 120 200 11000 2499 5500 187411550
55 /- 0.5 0.605 0.462 25 111 120 200 15950 3482 7970 2612 15950
85 /- 0.5 0.935 0.714 25 111 120 200 25300 5449 12650 4087 24750
115 /- 0.5 1.265 0.966 25 111 120 200 35200 7416 17600 5562
170 /- 2 1.870 1.428 25 111 120 200 37811 11022 18905 8167
Proposition Product-Range HTD14M

HTD 14ML

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
55 /- 1.0 0.660
34 152 170




19000
85 /- 1.0 1.020
34 152 170




29000
115 /- 1.0 1.380
34 152 170




40000
150 /- 1.0 1.800
34 152 170




53000
Proposition Product-Range HTD14ML

HTD 14MLL

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
55 /- 1.0 0.743
38 170 180




23680
85 /- 1.0 1.148
38 170 180




38480
115 /- 1.0 1.553
38 170 180




51800
150 /- 1.0 2.025
38 170 180




68080
Proposition Product-Range HTD14MLL

RPP 8M

Width [mm] Width tolerance [mm] Weight. approx. [kg/m2] z(min) minimum number of teeth d(min) approx. [mm] d(min) approx. [mm] tensioning roller on reverse side of belt Open belts F perm [N] Endless welded belts F perm [N] Truly endless belts* F perm [N]

Steel Kevlar

Steel Kevlar Steel Kevlar Steel Kevlar Steel
15 /- 0.5 0.096
18 46 90
1920
960

20 /- 0.5 0.128
18 46 90
2880
2440

25 /- 0.5 0.160
18 46 90
3840
1920

30 /- 0.5 0.192
18 46 90
4800
2400

50 /- 0.5 0.320
18 46 90
7680
3840

85 /- 0.5 0.544
18 46 90
14640
7320

Proposition Product-Range RPP8M

Wide belts









Endless welded belts

Min. width [mm] Max. width [mm] Width tolerance [mm] Weight, approx. [kg/m2/cm2] zmin minimum number of teeth dmin approx. [mm] dmin approx. [mm] tensioning roller on reverse side of belt F perm [N/25 mm.] Min. production length [mm]




Kevlar


Kevlar Kevlar
WT 10 150 450 1/-2 0.039 14 45 80 315 1100
WH 152.4 457.2 1/-2 0.033 14 56.64 80 315 1104.9

Siegling Proposition - Powerbelt

Standard width [mm] Width tolerance [mm] Weight. approx. [kg/m2] Minimum pulley diameter [mm] Min. tension idler diameter [mm] Open belts F perm [N] Endless welded belts


Steel Kevlar

Steel Kevlar Steel Kevlar
15 /- 0.5 0.068
50 90 2160
1080
25 /- 0.5 0.113
50 90 3840
1920
30 /- 0.5 0.135
50 90 4320
2160
40 /- 0.5 0.180
50 90 6400
3200
50 /- 0.5 0.225
50 90 7600
3800
75 /- 0.5 0.338
50 90 11520
5760
100 /- 0.5 0.450
50 90 15360
7680



The specifications listed are based on Forbo's experience. However, our specifications and data do NOT cover all possible belt drive conditions. It is the responsibility of the belt drive system designer to ensure Forbo's belts are appropriate for a given system and application. The provided data is representative of our in-house experience and does not necessarily match product performance in industrial use. Forbo Movement Systems cannot assume any liability concerning the suitability and process ability of our products. We also cannot assume liability for process results, damages or consequential damages associated with the use of our products. Note, ultimate tensile strengths are listed for references purposes only. Ultimate tensile strength values listed above are a theoretical calculation based on average cord strength and may not represent actual tensile test results.
