Cams

Any cam shape can be made for you.

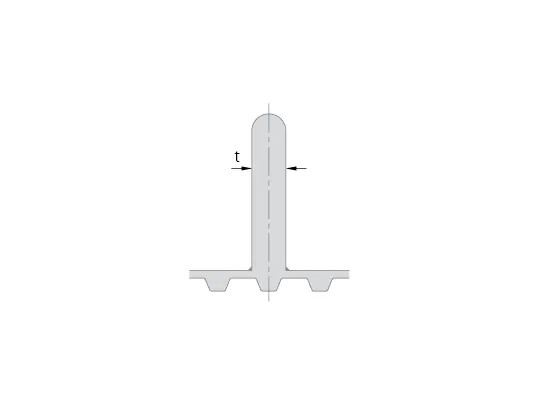

The recommended maximum cam thickness (t) is listed in the welding table according to the number of teeth on the sprocket.

Welding table

Maximum cam thickness in mm when welded on opposite tooth
Number of teeth on sprocket

Typ 20 25 30 40 50 60 100
T 5 5 6 6 8 9 10 12
T 10 8 9 10 12 14 15 20
T 20 12 13 15 18 20 23 30
AT 5 5 6 6 8 9 10 12
AT 10 8 9 10 12 14 15 20
AT 20 12 13 15 18 20 23 30
XL 5 6 6 8 9 10 12
L 6 7 8 10 12 13 16
H 8 9 10 12 14 15 20
XH 13 14 15 18 20 23 30
HTD 5M 5 6 6 8 9 10 12
HTD 8M 6 8 9 10 12 14 15
HTD 14M - 10 12 13 15 18 20


In the table, the recommended maximum cam thickness (t) is listed according to the number of teeth on the sprocket.
Welding Table

Maximum cam thickness in mm when welded on opposite gap between teeth
Number of teeth on sprocket

Typ 20 25 30 40 50 60 100
T 5 2 2 3 4 6 8 10
T 10 3 4 4 6 9 12 20
T 20 5 5 6 8 12 20 30
AT 5 2 2 3 4 6 8 10
AT 10 3 4 4 6 9 12 20
AT 20 5 5 6 8 12 20 30
XL 2 2 3 4 6 8 10
L 3 3 4 5 7 10 16
H 4 5 6 7 9 12 20
XH 2 5 6 8 12 20 30
HTD 5M 2 2 3 4 6 8 10
HTD 8M 3 3 4 4 6 9 12
HTD 14M - 5 6 6 7 10 13


In the table, the recommended maximum cam thickness (t) is listed according to the number of teeth on the sprocket.
Welding Table
